NUC-X full specs

 A NUC-X is based on a ASUS NUC13ANHi7 full height model



Linear

  1. 15.71 Vdc 65 VA
  2. 92 uV RMS noise
  3. Regulation bandwidth DC-2Mhz
  4. Remote sensing / noise canceling
  5. R-Core Transformer
  6. LM317 + TL431+ 2AS1943

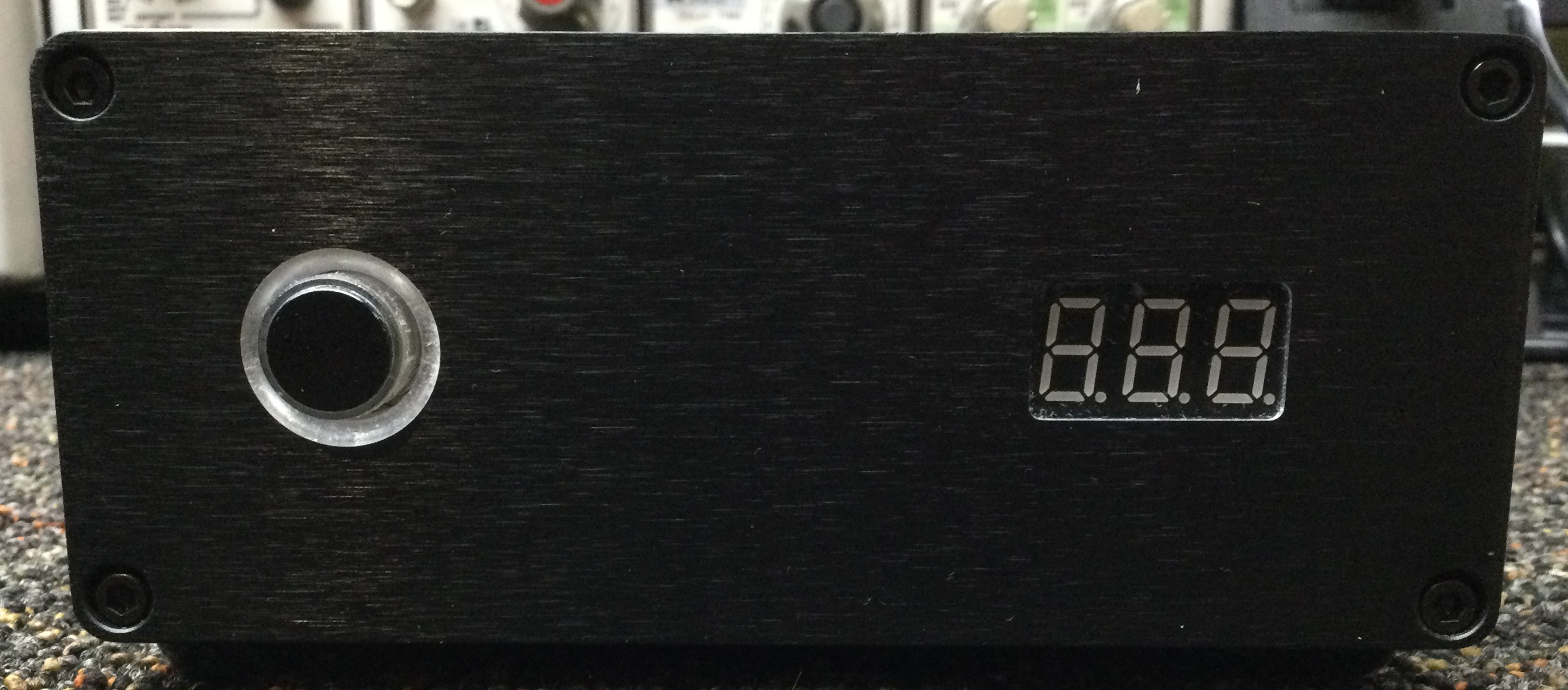

  7. LED display with switch to disable

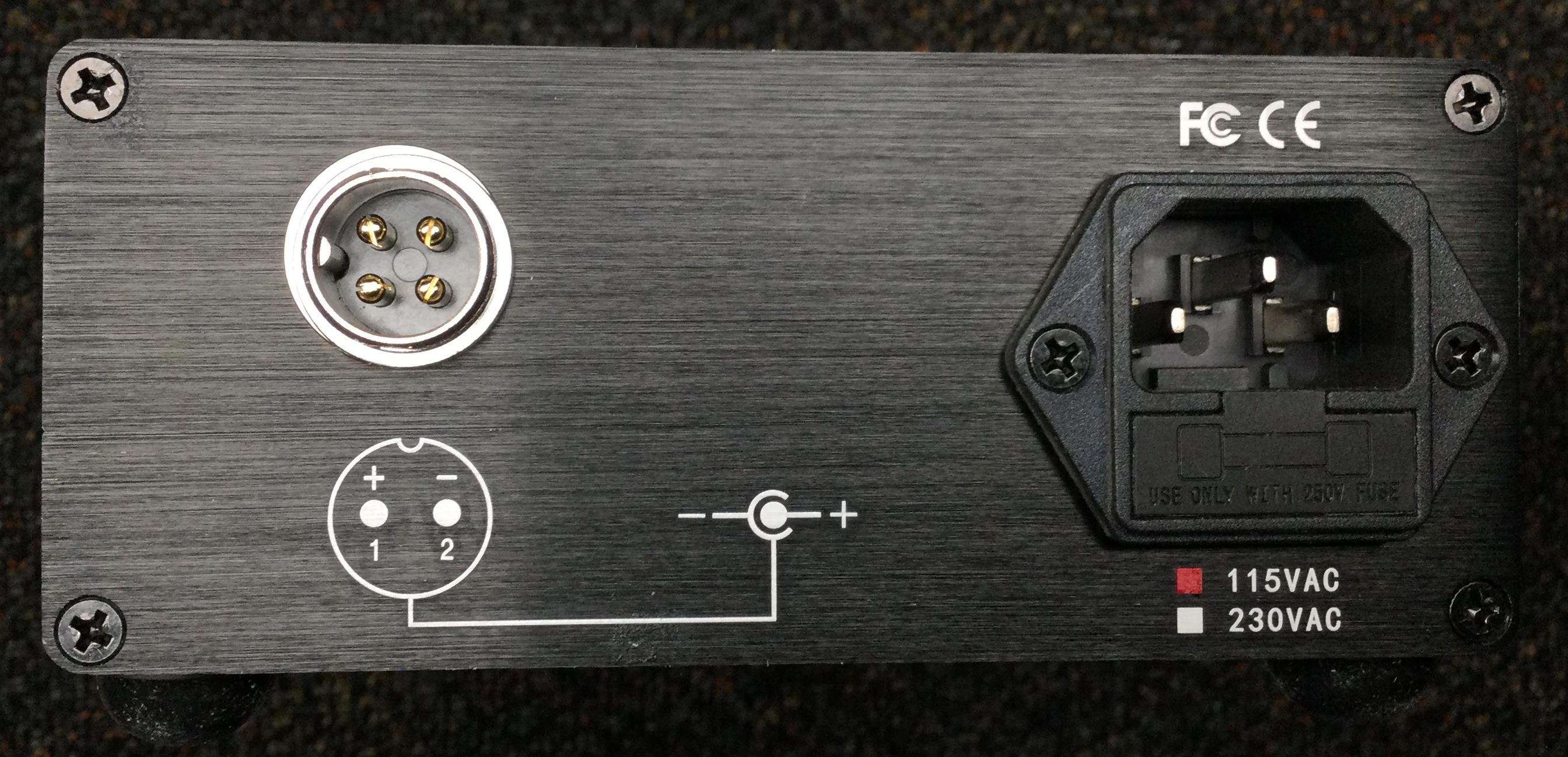

  8. 4 Pin high reliability gold aviation connector
  9. Auto reset thermal cut off 50C
  10. 10000UF main filtering cap

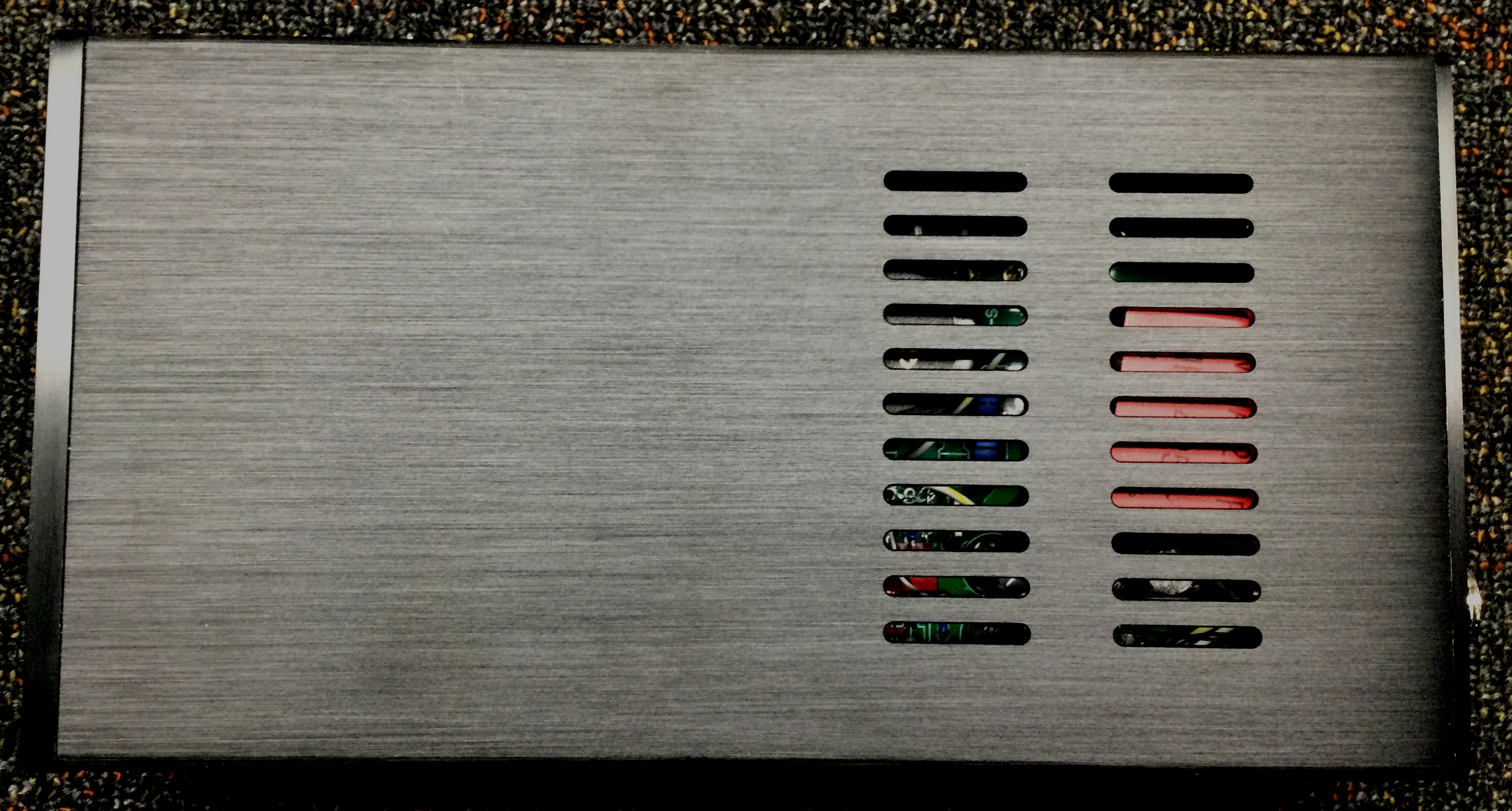

  11. 5" W x 2.5" H x 12" D x 5 LBS
  12. 100V/50hz - 140V/70hz for 115V model
  13. 210V/45hz - 255V/65hz for 230V model
  14. 0–40°C Ambient Operating Temp





NUC

  1. Intel Core i7-1360P 12 Cores, 16 Threads, 5Ghz
  2. Intel Iris Xe Graphics Max res 7680 × 4320
  3. 2x DDR4-3200 SODIMMs, 64GB max
  4. M.2 22×80 for NVMe Gen 4 8TB Max
  5. M.2 22x42 key B for NVMe Gen 4 8TB Max
  6. Optional Intel® Wi-Fi 6E AX211 + Bluetooth 5.3

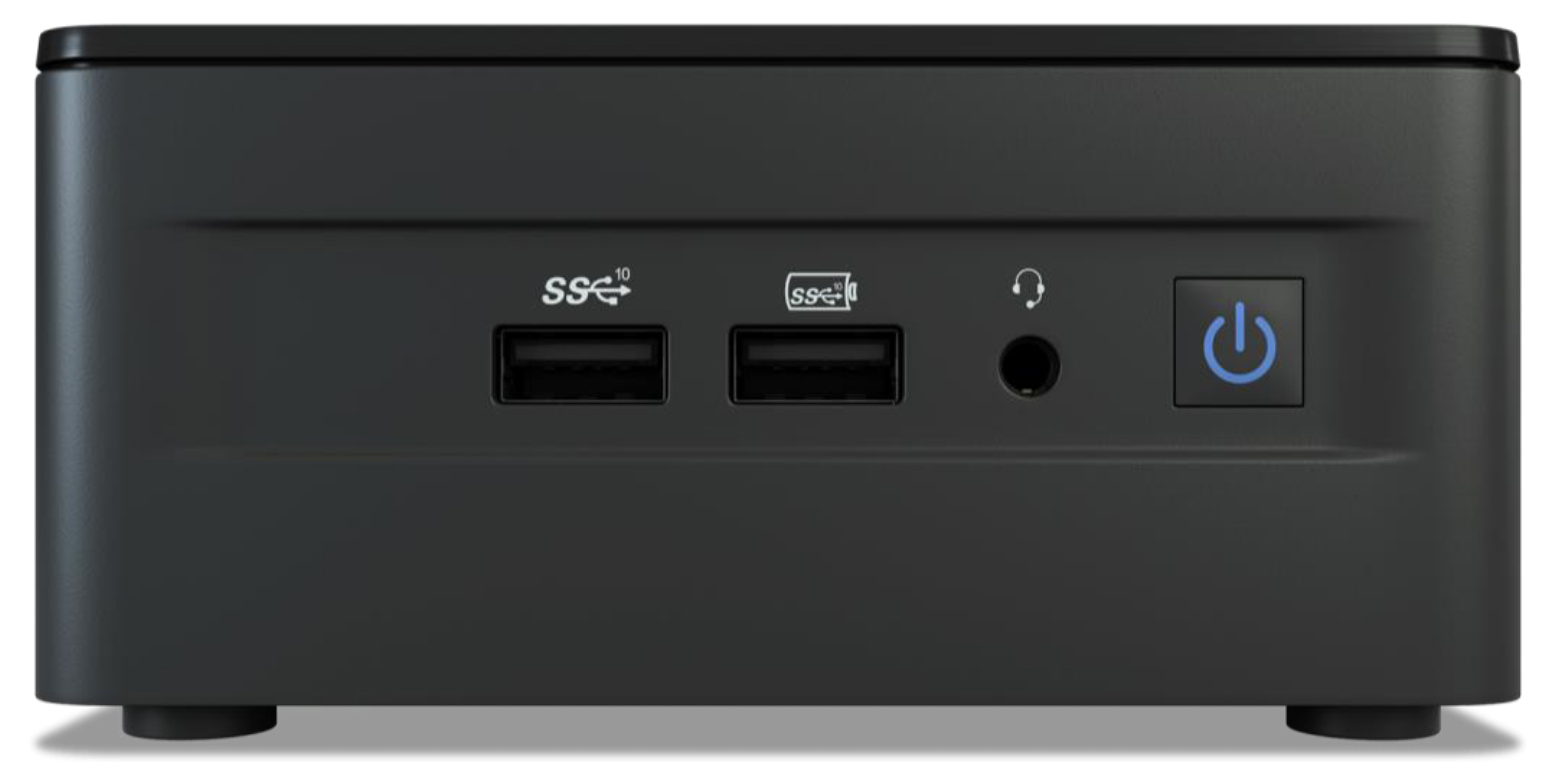

  7. 2x front USB 3.2 ports
  8. 1x 3.5mm audio jack
  9. 1x linear power supply

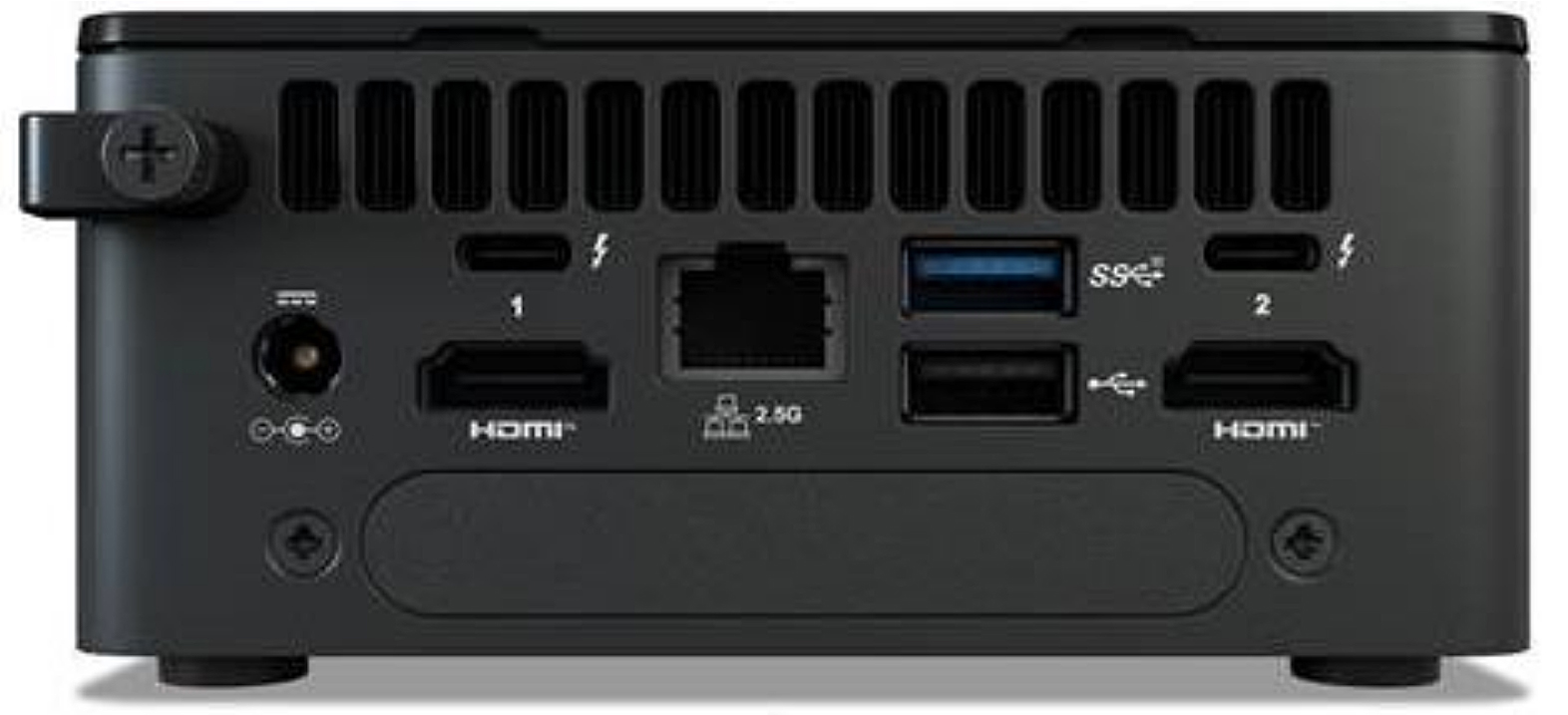

  10. 2x Thunderbolt 4 ports
  11. 2x HDMI 2.1 ports
  12. 1x 2.5Gb LAN
  13. 1x rear USB 3.2 port
  14. 1x rear USB 2.0 port
  15. 1x Kensington lock
  16. 0–40°C Ambient Operating Temp
  17. MTBF 50,000 hours - aprox 6 years 24/7 on
  18. 5" W x 5" D x 2.25 H  x  1.5 LBS
